1861 Springfield Rifle Musket

Preservation & Care of Arms in Service
INSTRUCTION-The officers, non-commission officers, and soldiers, should be instructed and practiced in the nomenclature of the arms, and the manner of dismounting and mounting them, and the precautions and care required for their preservation.
Each soldier should have a screw-driver and a wiper, and each non-commissioned officer a wire tumbler-punch and a spring service. No other implements should be used in taking arms apart, or in setting them up.
In the inspection of arms, officers should attend to the qualities essential to service, rather than to a bright polish on the exterior. Arms should be inspected to the quarters at least once a month, with the barrel and lock separated from the stock.
Dismounting by a Soldier,-The rifle-musket should be dismounted in the following order, viz:
1st. Unfix the bayonet;
2d. Insert the tompion;
3d. Draw the ramrod;
4th. Turn out the tagscrew;
5th. Take off the lock-to do this put the hammer at half cock and partially unscrew the side screws, then, with a slight tap on the head of each screw with a wooden instrument, loosen the lock from its bed in the stock; turn out the side screws, and remove the lock with the left hand;
6th. Remove the side screws without disturbing the washers;
7th. Take off the bands in order, commencing with the uppermost;
8th. Take out the barrel.
In doing this, turn the musket horizontally, with the barrel downward, holding it loosely, with the left hand below the rear sight, the right hand grasping the stock by the handle; tap the muzzle on the ground, it necessary to loosen the breach.
If an attempt were made to pull the barrel out by the muzzle, it would in case it were wood hound, be liable to split at the head of the stock. The foregoing parts of the rifle-musket are all that should be taken off, or dismounted by the solder.

The breech-screw should be taken out only by an armorer, and never in ordinary-cleaning.
The mountings, cone and coneseat screw should not be taken off, nor should the lock be taken apart, except by permission of an officer.

To Clean the Barrel.-
1st. Stop the bent with a peg of soft wood, or piece of rag or soft leather pressed down be the hammer; pour a gill of warm water into the muzzle; let it stand a short time, to soften the deposit of powder; put a plug of soft wood into the muzzle, and shake the water up and down the barrel; pour it out, and repeat the operation until the water comes out clear; remove the peg from the cone, and stand the barrel, muzzle downwards, to drain for a few moments.
2d. Screw the wiper on the end of the ramrod, and put a piece of dry cloth or tow around it sufficient to prevent it from chafing the grooves of the barrel; wipe the barrel dry, changing the cloth two or three times.
3d. Put no oil into the vent, as it will clog the passage, and cause the first primer to misfire; but, with a slightly oiled rag, rub the bore of the barrel and immediately insert the tompion in the muzzle.
4th. After firing, the barrel should always be washed as soon as practicable; when the water comes off clear wipe the barrel dry and pass into it an oiled rag. Fine flour or emery cloth in the best article to clean the exterior of the barrel.

To Clean the Lock.- Wipe every part with a moist rag, and then a dry one; if any part of the interior shows rust, put a drop of oil on the point or end of a piece of soft wood dipped into the flour of emery; rub out the rust and wipe the surface dry; then rub every part with a slightly oiled rag.

To Clean the Mountings.- For iron and steel parts, use fine emery moistened with oil, or emery cloth. For brass parts, use
rotten stone moistened with vinegar or water, applied with a rag, brush, or stick; oil or grease should be avoided. The dirt may be removed from screw-holes by screwing a piece of soft wood into them. Wipe all parts with a linen rag, and leave the parts slightly oiled.

Dismounting by an Armorer.-The parts which are specially assigned to be dismounted by an experienced armorer will stated in their regular order, following
No. 8, viz:
9th. Unscrew cone;
10th, take out cone seat screw;
11th, remove band-springs using wire punch;
12th, take out the guard screws. Be careful that the screw-driver does not slip, and mar the stock.
13th, remove the guard without injuring the wood at either end of the plate;
14th, remove the side-screw washers with a drift-punch;
15th, remove the butt-plate;
16th, remove the rear sight;
17th, turn out the breech screw. No other wrench should ever be used for this purpose, and the barrel should be held in clamps, neatly fitting the breech Lock.

To take the lock apart:
1st. Cock the piece, and apply the spring-piece to the mainspring; give the thumb-screw a urn sufficient to liberate the spring from the swivel and mainspring notch; remove the spring;
2d. The sear-spring screw;
3d. The sear-screw and sear.
4th. The bridlescrew and bridle.
5th. The tumbler-screw;
6th. The tumbler-this is driven out with a punch, inserted in the screwhole, which at the same time liberates the havver.
7th. Detach the main ring swivel from the tumbler with a drift-punch;
8th. Take out the feed finger and spring;
9th The catch-spring and screw.

As a general rule, all parts of the musket are assembled in the inverse order in which them are dismounted. Before replacing screws, oil them slightly with a good sperm oil, (inferior oil is converted into a gum which clogs the operation of the parts)
Screws should not be turned in so hard as to make the parts bind. When a lock has from any cause become gummed with oil and dirt, it may be cleaned by boiling in soap-suds or in pearl ash or soda water; heat should never be applied in any other way.

Precautions in Using.- On ordering arms on parade, let the butt be brought gently to the ground, especially if the ground be hard. This will save the mechanism of the lock from shocks, which are very injurious to it and which tend to loosen and mar the screws and spoilt the wood work.
The ramrod should not be "sprung" with unnecessary force, for fear of injuring the corners of the grooves; and, in stacking arms, care should be taken not injure the bayonets by forcibly training the edges against each other.
No cutting, marking, or scraping the wood or iron should be allowed; and no part of the gun should be touched with a file.
Take every possible care to prevent wear from getting between the lock or barrel, and stock. If any should get there, dismount the gun as soon as possible, clean and oil the parts as directed, and see that they are perfectly dry assembling them.

The Appleton Motor, Thursday, June 27, 1861
Thanks to Mark Karweick

Socket Bayonet.

Seventeenth Century French military engineer, La Prestre de Vauban, designed and built military strongholds throughout Europe and then developed a means of destroying them - trench warfare. Basically, this began as a trench filled with men providing firepower that allows enough protection for you to dig another trench closer to the objective in sort of a hop-skip progression. On reaching the objective, you undermine it, put in explosives and blow it up. He also invented the socket bayonet.

Scientific American/ 1843

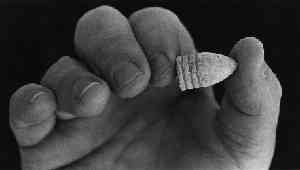

58Cal. Minie Ball
